EPS Compact Cutter

Overview

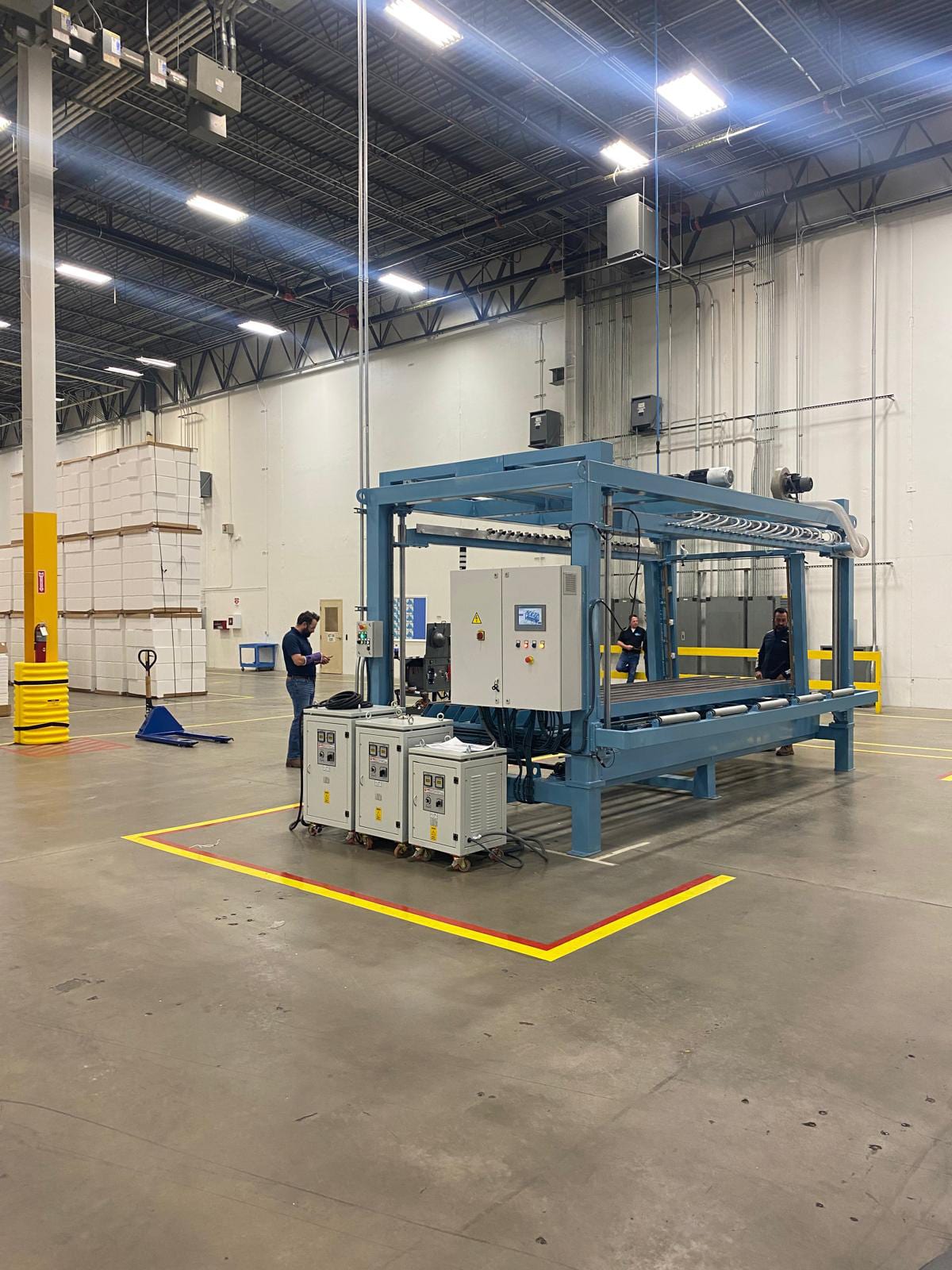

The compact cutter is a self-contained block cutting machine where the EPS block remains stationary while a motorized cutting frame moves through it along the X, Y, and Z axes. This design allows a single machine to perform horizontal slicing, vertical trimming, and cross-cutting without repositioning the block between operations.

It is a practical alternative to a full sheet cutting line for manufacturers who process multiple block sizes, produce varied sheet dimensions, or operate at moderate throughput levels where the investment in a continuous line is not justified.

How It Works

An EPS block is placed into the machine’s work area, either manually or by a loading mechanism. The operator selects the cutting program through the HMI touchscreen, specifying sheet thickness, width, and length. The cutting frame (carrying one or more electrically heated resistance wires) moves through the block along the programmed path.

Horizontal passes produce sheets at the set thickness. Vertical and lateral passes trim sheets to width and length. Wire temperature and feed speed are independently adjustable per axis through the PLC, allowing the operator to optimize cut quality for different densities and block conditions.

When to Use a Compact Cutter

The compact cutter is well suited to several production scenarios. Operations that produce a wide range of sheet sizes benefit from the machine’s ability to switch dimensions through software. Manufacturers who process blocks of varying sizes (from different mold configurations or from both fixed and movable wall block form machines) can handle all of them on one compact cutter.

For new EPS plants or smaller operations, the compact cutter offers a significantly lower capital cost and smaller floor space requirement than an inline cutting system, while still delivering clean, accurate cuts with hot wire technology.

Limitations

Because the block must be loaded, cut, and unloaded as a discrete unit, the compact cutter does not match the continuous throughput of a dedicated sheet cutting line. For high-volume, single-product operations, the sheet cutting line remains the more efficient choice. The compact cutter is a flexible, cost-effective machine designed for varied production at moderate volumes.
